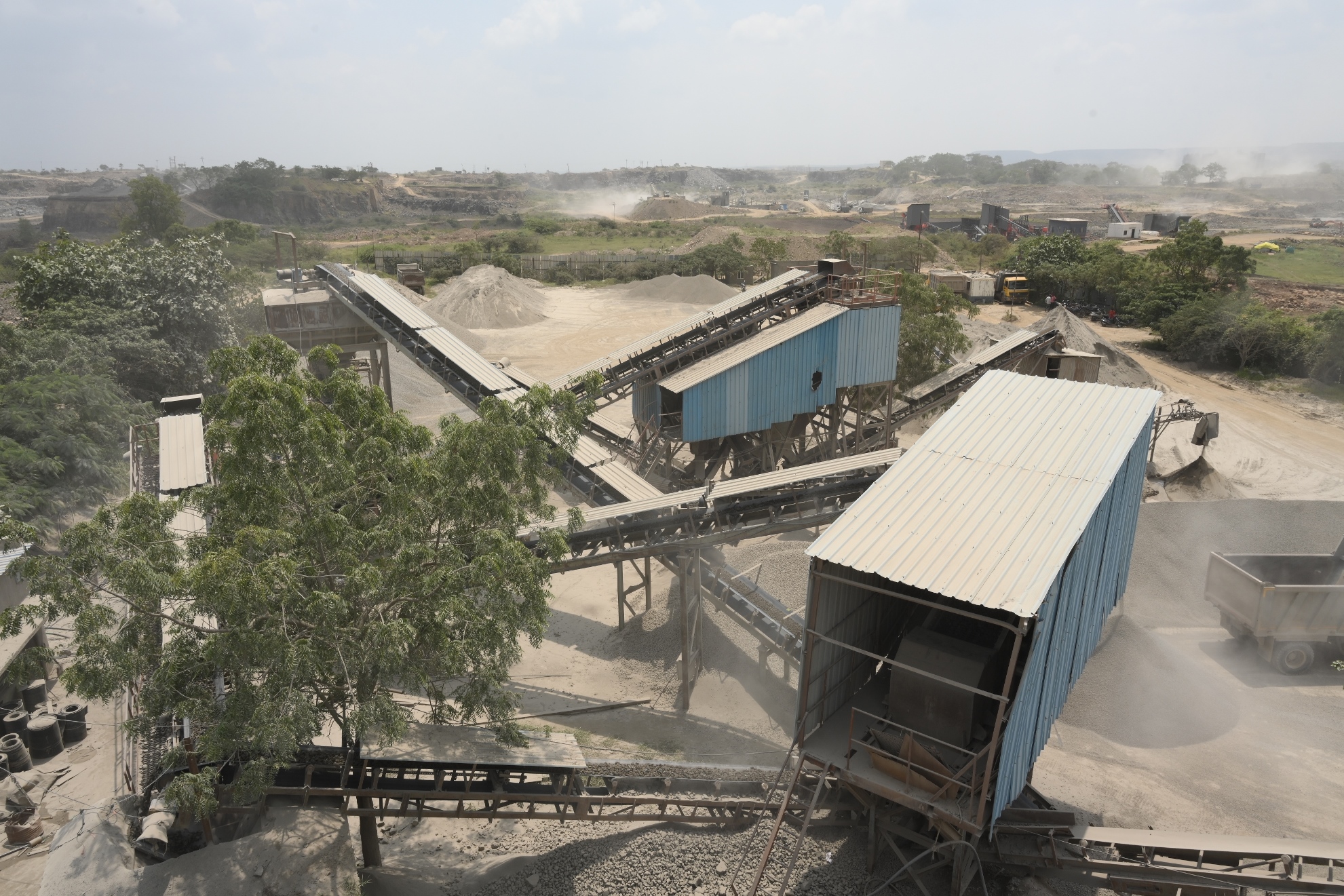

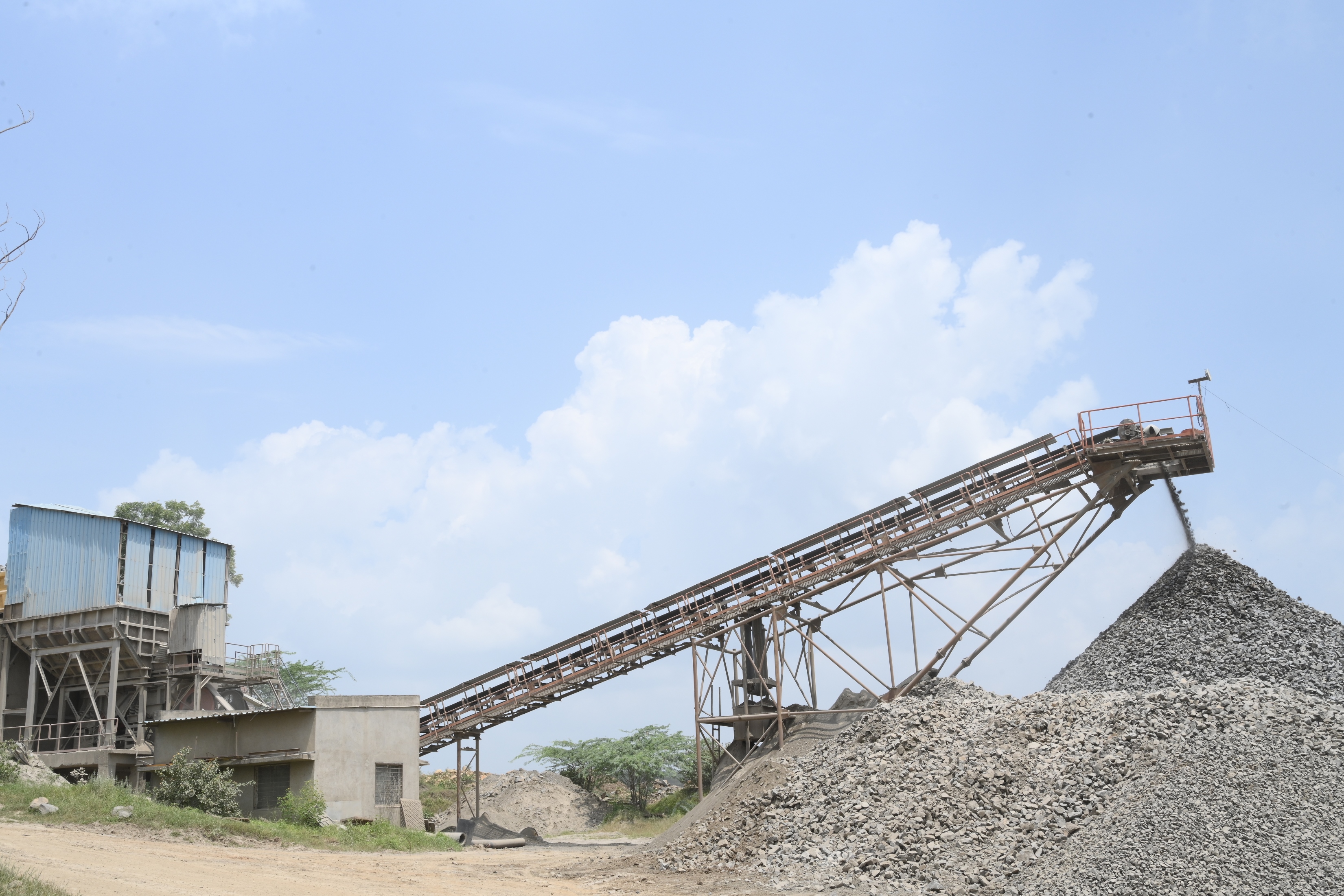

Stone Crusher Plant

40mm-60 mm Aggregates are mainly used in ready mix concrete, asphalt/bitumen/concrete roads base and sub-base course, pavements, separately or mixed with other aggregates depending on the application

These are obtained by crushing of rocks, having angular shape and are retained on 20mm sieve while 60-70% of the aggregates pass through the 20mm sieve.These are classified as uniformly graded aggregates,High strength,Low slit content, Used for concrete mix designs,Useful for highly packed reinforced sections,Used in RCC structures like the construction of buildings, flyovers etc.

Generally, during the sieve analysis, 70% of the aggregate passes through 10mm sieve while 95% of the particles lie between the range of 10mm and 4.75 mm size. Used in RCC structures like the construction of buildings, flyovers etc. This size is used in all type of civil & Concrete constructions also in Concrete road constructions as well as upper layer of bituminous road

Aggregates less than size 6mm is called as Grit, while agg's more than 6mm in size is termed as Kapchi. Words Grit & Kapchi instead of Aggregates are normally used in Asphalt road works rather than in cement concrete works. In cement concrete mix, you can use Grit as a part of fine aggregates or Coarse Sand.
4.75 mm to 8 mm

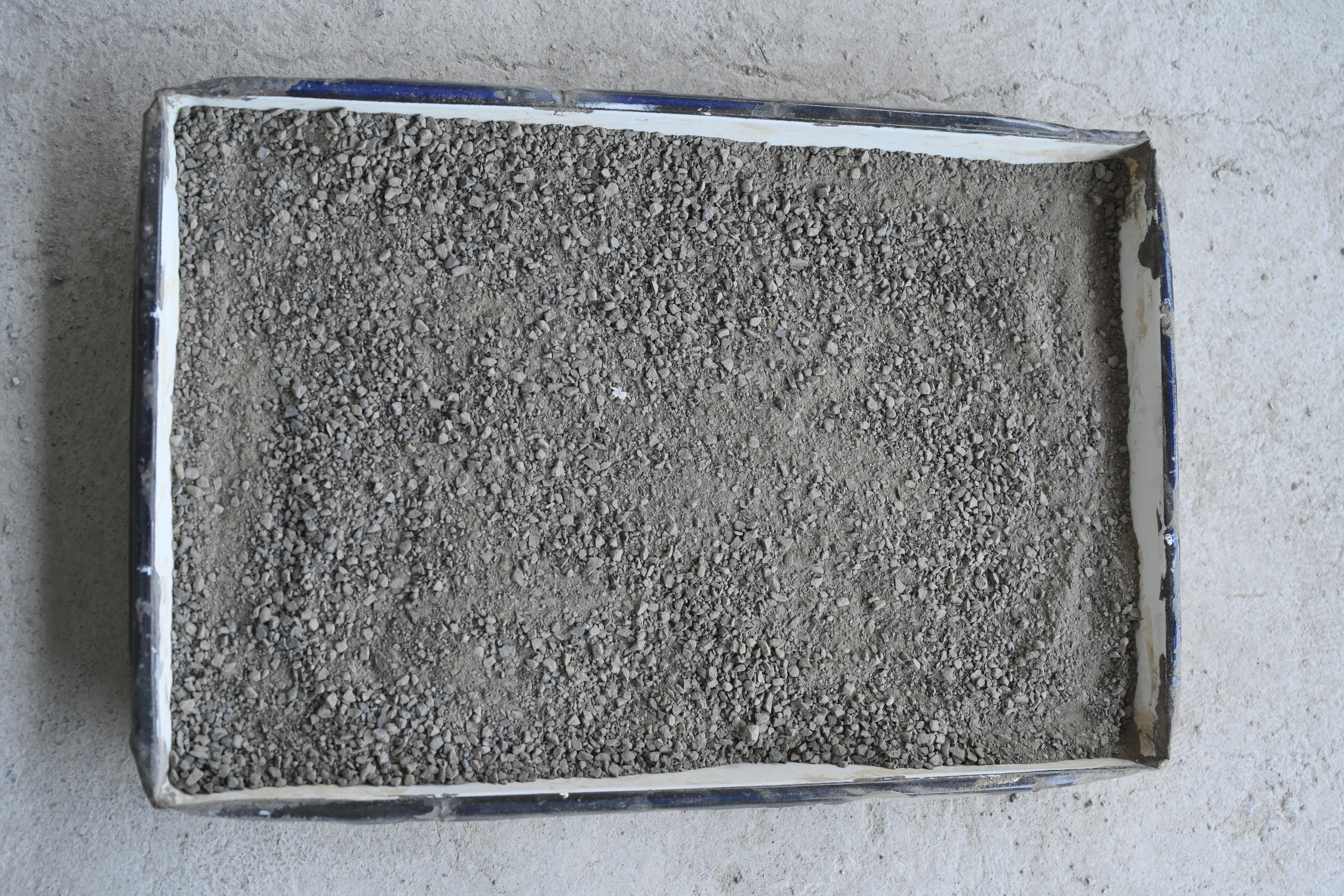

Crushed sand, also known as manufactured sand or crushed stone sand, is a type of aggregate material that is produced by crushing rocks, boulders, or larger stones. It is commonly used in construction and landscaping projects as a substitute for natural sand. Crushed sand offers several benefits, including consistent grain size, improved workability, and reduced cost compared to natural sand. It is often used in concrete production, road construction, and as a base material for laying pavers or bricks.
0 mm to 4.75 mm
